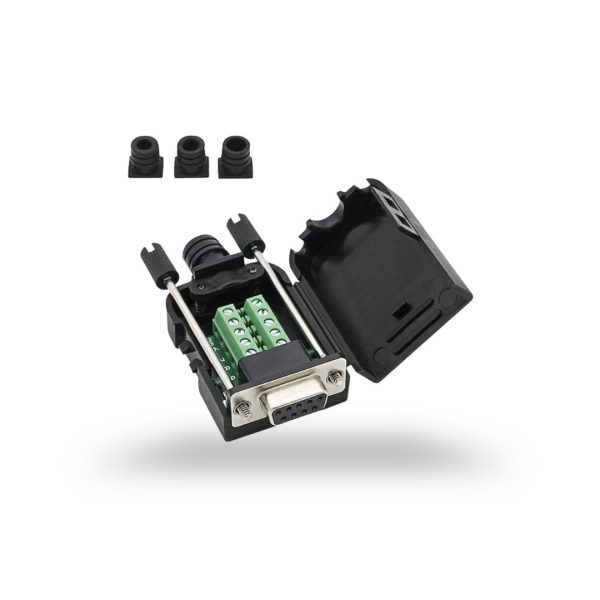

DB9 Breakout Connector to Wiring Terminal RS232 D-SUB female Serial
Original price was: Rp65,000.00.Rp60,000.00Current price is: Rp60,000.00.
Description
Product name : DB9 female adapter;
Total Size : 46 x 34 x 20mm/1. 8″ x 1. 2″ x 0. 71″(L*w*h)
Fixing Hole diameter : 3mm; fixing Hole center distance : 6mm/0. 24 inch
Material : metal Nickel plated copper needle, electric part; color : black, Green
Weight : 27G
DB9 female connector to screw terminals. High quality RoHS compliant assembly.
Wire range: 26-16AWG
Connect type: male with Case
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Pin header and cage: Brass
Case: ABS + PC
Package included:
1 x DB9 breakout board female adapter with case
2x Metal cable pressing plate
2x Screws
2x Long bolts
3x Wire cover
