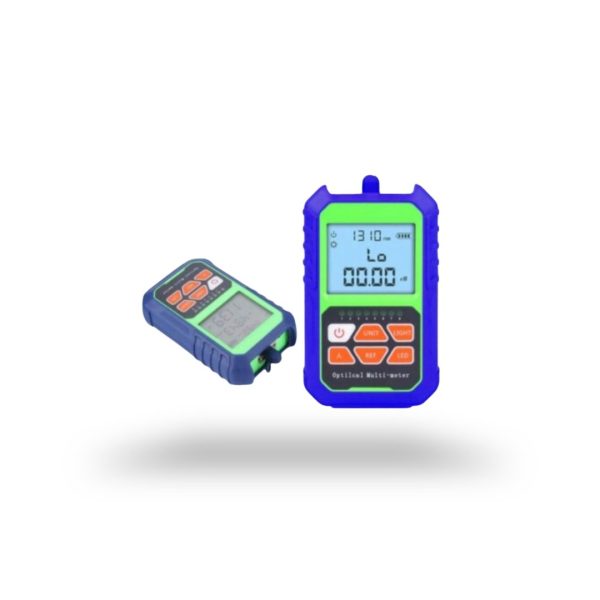

OPM Optical Power Meter LAN Tester Fiber Optik FTTH Tools FO Limited – B ( -50~+26 )

OPM mini 3 in 1/Optical Power Meter 3 in 1 fiber optic READY

TERSEDIA 2 VARIAN :

1.Y3-D0550 B (-50~+26) 5MW

2.Y3-D0500 A (-70~+6) 5MW

3 in1 Optical Power Meter Visual Fault Locator Network Cable Test optical fiber tester, 5km Visual Fault Locator

Wavelength range: 800-1700

Connector: FC / SC / ST

Detector type: InGaAs

Measuring range: -70 to +3

Uncertainty: 5%

Standard Wavelength (nm): 850 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm,

Display resolution: linear display, 0.1% logarithmic display: 0.01dBm

Red working wavelength: 650nm

Red power:> 5mW

Operating temperature: -10 ~ +60 ‘”

Storage temperature: -25 ~ +70 ‘”

Automatic shutdown time: 10min

Battery continuous working hours (h): ’48

Product Size: 118 * 68 * 30mm

Power: 1.5VAAA * 2

Weight: 0.14KG

Note: The product does not include batteries

product advantages

1. Cable test function

Operation method: Long press UNIT key for 3 seconds to open RJ45 test mode, then press to close RJ45 test mode

2. High quality imported laser head

Penetrating farther, longer life.

3. New LED lighting features for dark work environment

4. Can choose 6 kinds of wavelength: 850nm.1300nm.1310nm.1490nm.1550nm.1625nm.

Support three kinds of interface: FC interface .SC interface, ST interface

5. Outgoing maintenance only one machine

Function upgrade 3 in 1

Optical Power Meter + Visual Fault Locator + Network Cable Test

6. DIY self-calibration

According to the actual test needs self-test parameters

At the same time press the + REF + UNIT button, enter the user mode, the screen displays the letter “CAL”

Press the “REF” and “UNIT” keys at the same time to restore the power meter to the factory state

1 x Power Meter Optik

1 x Panduan Pengguna

1 x Baterai (2pcs baterai)

1 x Tali grey
