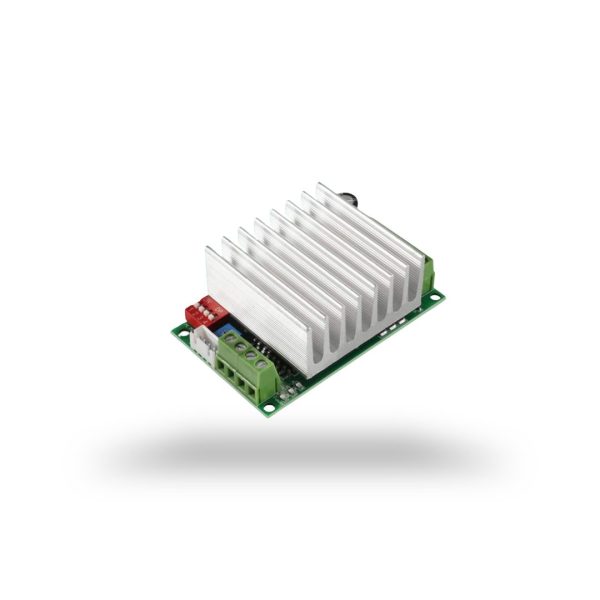

TB6600 4.5A Stepper motor driver stepping input DC10V-45V
Original price was: Rp150,000.00.Rp120,000.00Current price is: Rp120,000.00.
Description
Description:
1.Working voltage DC 10V-45V, recommended to use DC 32V.
2.use of high-speed optical coupling 6N137, ensuring high speed without losing step.
3.Toshiba’s new high-current, high-voltage TB6600HG new original chip , low-pressure
shut-off, overheating parking and over-current protection circuit, short-circuit
protection and increased compared to TB6560.
4.Rated maximum output reached: 4.5 of 5 A.
5.suitable for 4.2A 42,57,86 within the 2/4phase 4/6 wires
6.automatic semi-flow function .
7.Subdivision: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
8.Width Length 82 * 50 * high 35 (MM)
feature of product:
1, the output current is infinitely adjustable to meet your various application required.
2, automatic half current function. And a semi-automatic flow switch, easy to use.
3, using high-speed optical coupling 6N137, ensuring high speed without losing step.
4, printed on the back panel are subdivided setup instructions.
5, used big heat sink to increase heat dissipation.
6, output short-circuit protection .
7, using common anode input, there are two input terminals, wiring more convenient.
