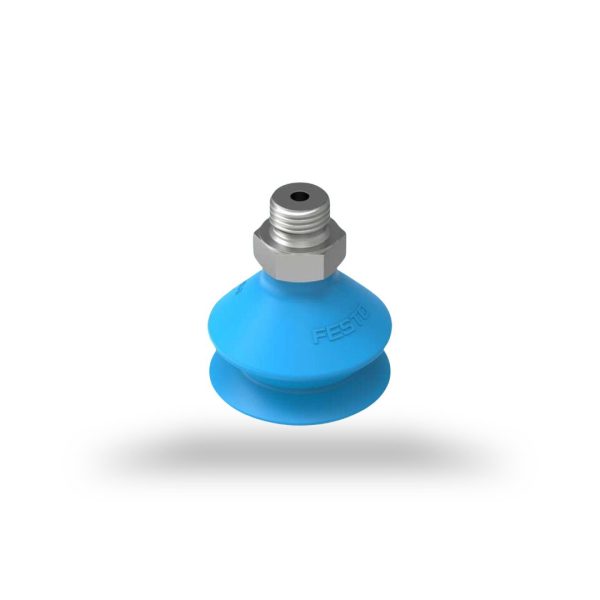

FESTO suction cup VASB-55-1/4-PUR-B (1396063)
Original price was: Rp330,000.00.Rp320,000.00Current price is: Rp320,000.00.
Description
Suction cup height compensator 20 mm
Nominal size 4 mm
suction cup diameter 55 mm
suction cup volume 30.4 cm3
Effective suction diameter 44.7 mm
Position of connection on top
Assembly position Any
Suction cup shape Round, bellows 1.5 conv
Operating pressure -0.95 … 0 bar
Nominal operating pressure -0.7 bar
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance classification CRC 2 – Moderate corrosion stress
Ambient temperature -20 … 60 °C
Retention force at nominal operating pressure 110 N
Product weight 39 g
Mounting type Via vacuum port
Vacuum connection G1/4
Colour blue
Shore hardness 60 +/- 5
Material of threaded plug Zinc die-casting
Materials note Conforms to RoHS
Material suction cup PUR.
