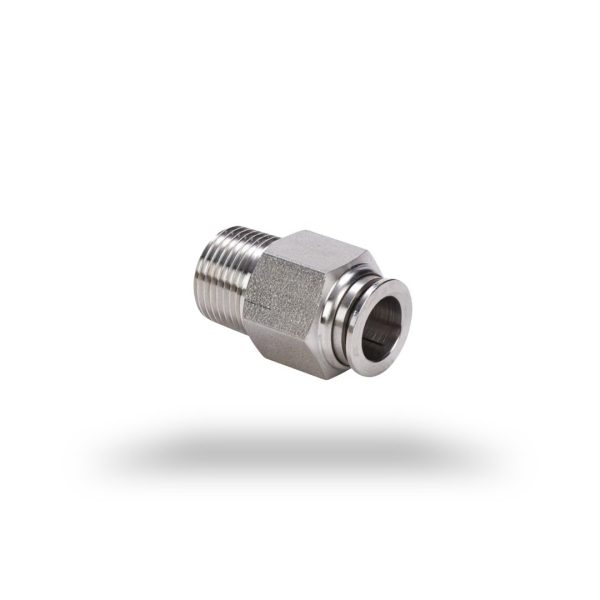

FESTO push-in fitting NPQH-D-G14-Q8-P10
Original price was: Rp57,000.00.Rp55,000.00Current price is: Rp55,000.00.
Description
PN : 578342
Size Standard
Nominal size 6 mm
Type of seal on screw-in stud Sealing ring
Assembly position Any
Container size 10
Design structure Push/pull principle
Operating pressure complete temperature range -0.95 … 20 bar
Certificate issuing department NSF C0523185
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 3 – High corrosion stress
Food-safe See declaration of conformity
NSF/ANSI 169
Ambient temperature 0 … 150 °C
Max. tightening torque 15 Nm
Product weight 14.1 g
Pneumatic connection, port 1 Male thread G1/4
Pneumatic connection, port 2 For tubing outside diameter 8 mm
Materials note Conforms to RoHS
Material housing Nickel-plated brass
Material of threaded seal FPM
Material release ring Nickel-plated brass
Material of tubing seal FPM
Material of tube retaining claw High alloy steel, non-corrosive
