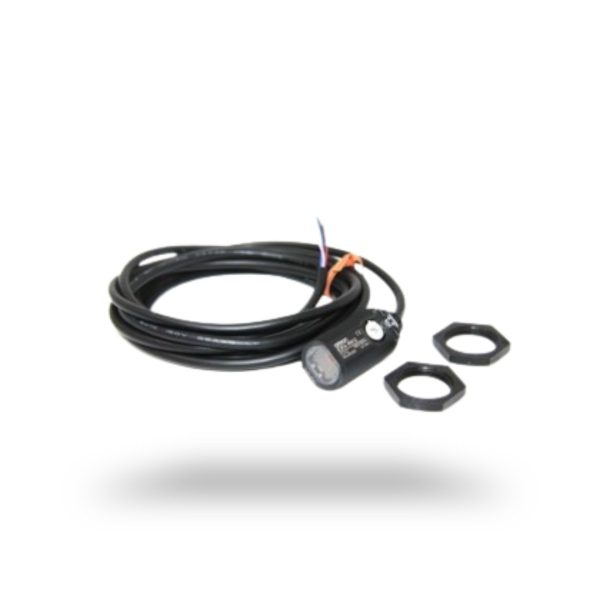

OMRON Photoelectric Sensor E3FA-DP12
Original price was: Rp300,000.00.Rp240,000.00Current price is: Rp240,000.00.
E3FA-DP12 E3FA – DP12 E3FA 2M PNP Photoelectric Sensor PT67
Description:
Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm)
Description
E3FA-DP12 E3FA – DP12 E3FA 2M PNP Photoelectric Sensor PT67
Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm)
Shape Cylinder type
Sensing method Diffuse-reflective
Sensing distance White paper 300 x 300 mm: 300 mm
Spot size 40 x 50 mm (sensing distance: 300 mm)
Differential distance 20% max.
Light source Red LED (624 nm)
Power supply voltage 10 to 30 VDC±10% ripple (p-p) 10% included
Current consumption 25 mA max.
Control output PNP open collector
30 VDC max.
100 mA max.
Residual voltage: 3 V max.
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time Operate or reset: 0.5 ms max.
Sensitivity setting Single-turn adjustment
